The government will soon be making a decision on light rail (if they haven’t already). If you’ve read our previous posts on the topic you’ll know we think surface light rail is the best option compared to tunnelled light rail or light metro. That’s because not only is it a highly effective solution, it is also the cheapest of the options suggested which means we could potentially roll it out  more easily to other corridors too, put another way, for the same price, two surface light rail lines will provide a better outcome for Auckland than one tunnelled option.

The Auckland Light Rail (ALR) team have recommended the middle ground of tunnelled light rail though they’ve also said they think all three options are viable. There is certainly a level of appeal to that, by tunnelling it means we could get a higher level of reliability and frequency, though those would still be very good under the surface option. It also makes it easier to use the surface space on Sandringham Rd for bike lanes and trees without needing to widen.

Furthermore, the chair’s report suggests it would deliver similar outcomes to a metro solution, at a lower cost. As a reminder, the tunnelled light rail option was about the same as light metro between Wynyard and Onehunga but then followed the surface route through Mangere Bridge and Mangere Town Centre.

However, the more I think about it compared to both the surface and light metro options, the more it feels like it’s the worst of both worlds. If the government were to choose an option that includes a large amount of tunnelling, we might be better off just biting the bullet and going for the full light metro solution. Here’s why:

The Driverless factor

The key benefit light metro has over the other options is that it is driverless and would be similar to systems like Vancouver’s Skytrain or the Copenhagen Metro. Like those systems it would be able to run reliably at very high frequencies and do so at less cost.

Travel Time

Based on the numbers released by the ALR team, compared to tunnelled light rail, having one less station and sticking to the motorway corridor instead of the diversion via Bader Dr means light metro is five minutes faster between Mangere Town Centre and other stations further north. For Mangere residents they estimate it means over 100,000 more jobs will be accessible within 45 minutes of travel compared to the tunnelled light rail option – though I always have some scepticism about these modelled outputs. As a result, ALR’s modelling suggests this makes light metro more attractive and consequently it is projected to have higher overall ridership.

Costs

The focus of the discussion has been on the capital cost of building these options – just a quick note on that, everyone has focused on the headline figures of $9b to $16.3b but those costs are inflated to the time of build and a more realistic comparison to today’s costs are the NPV figures of $7.1b to $11.2b – still very expensive.

The focus on capital costs is understandable given the scale of them but also because we all tend want a headline number and we tend to ignore the ongoing operational costs. Those costs are in an as yet unreleased part of the business case and some things we’d expect to be similar between the options, such as the cost of maintenance and the power to run the vehicles. But the ALR team did explain to me that there effectively two other big cost factors that differentiate the options

  1. Drivers – will be required for the two light rail options due to the on-road sections, just like our buses and trains do. By comparison the light metro option would be driverless
  2. Tunnels – are much more expensive to operate than surface solutions due to the need to run things like ventilation and safety systems etc.

That means we get the following matrix.

Tunnelled light rail may come out better here during the assessment but I wonder how it stands up over the entire regional network as proposed.

Regional Network

The City Centre to Mangere route is meant to be the first stage in a new rapid transit network for Auckland that complements our existing (and planned) rail and busway network. Interestingly, the planned future network map was recently and quietly updated to include a second North Shore line paralleling the busway. That seems an odd choice and probably based on someone deciding that upgrading the busway would be disruptive so we need to spend billions to build a parallel route.

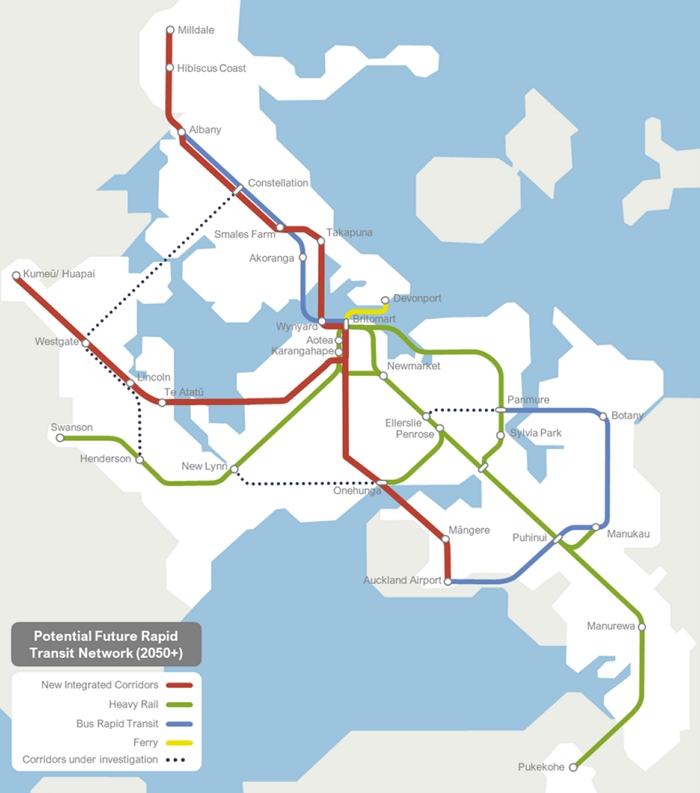

In total the ‘red’ network above would be about 54km and both the North Shore and Northwest lines are likely to be fully grade separated. The only thing preventing that entire network from being driverless and the benefits that would bring would be about 6km of track around Onehunga and Mangere.

Of course, regular readers will know that we’re also in favour of staged approaches and have even suggested in the past we could build a surface light rail line and then a metro type solution on a different corridor in the future. The difference here is there will always be a need for a high-quality surface solution on Dominion Rd even if we eventually build light metro somewhere else. By comparison there isn’t likely to be much use for a surface section just between Mangere Bridge and Mangere Town Centre. So without significant additional investment to extend the line it seems it could become a stranded asset.

Vehicles

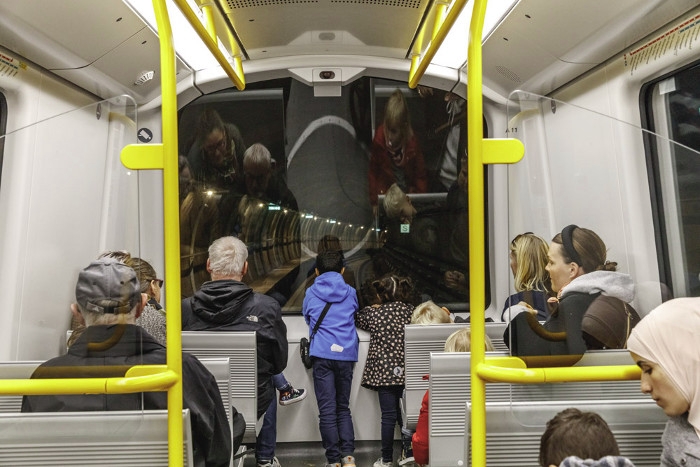

If we do want to get to Light Metro eventually for the network there’s another not to choose Tunnelled Light Rail but to go straight to Light Metro: vehicle types. It would allow us to go for high-floor metro styled vehicles which have advantages such as being easier to maintain, are quieter due to the use of bogies and have more interior space for standing.

There’s also something appealing about metro trains being somewhat boxy like these trains from Berlin.

And there’s one more cool feature about driverless trains, you can look out the front window.


As mentioned earlier, we still think a surface solution is the best outcome for the City Centre to Mangere corridor and there will always be a need for a high-quality solution on Dominion Rd. That doesn’t mean we couldn’t use light metro in the future on other corridors. However, if the government were to go for a tunnelled option, light metro would probably be a better long-term option.
