The government have seemed a bit more desperate to be seen to be doing things lately, and yesterday they got an opportunity with a sod-turning event to mark the start of removing the last seven level crossings on the southern and eastern lines north of Papakura. This follows on from the funding announcement earlier this year.
Construction work to remove many of Auckland’s level crossings and replace them with over-bridges for vehicles and pedestrians begins next week in a boost for the city’s productivity and job creation, Transport Minister Chris Bishop and Auckland Mayor Wayne Brown say.
Earlier this year, the Government and Auckland Council agreed to jointly contribute funding for the removal of level crossings in Takanini and Glen Innes. The level crossings will be removed or replaced with grade-separated crossings to maximise the City Rail Link’s ability to speed up journey times by rail and road and boost Auckland’s productivity.
The scope of the Takanini and Glen Innes package includes a total of eight level crossing removals or replacements: three new grade-separated road bridges, three new pedestrian access bridges, and the closure of two unsafe level crossings.
“The City Rail Link is on schedule to open next year, and will reshape travel for much of Auckland. Commuters can expect faster journeys, less congestion, and a range of other major benefits,” Mr Bishop says.
“Level crossings – where roads intersect with train tracks – are a common source of frustration for motorists. Most people know the sinking feeling when warning lights start flashing and the barriers come down, signalling an approaching train. For truck drivers, tradies, couriers, and many others, those minutes of waiting can mean lost time, and in many cases, lost income.”
Removing level crossings is a good thing, and has taken far too long to get to this point – the need to get them removed has been talked about for decades. However, I do find it odd how much the government are talking up the productivity aspect, when from a time perspective, the barrier arms are down for less time than the red light phase at standard intersection.
Far more important are the safety benefits, but going by the government’s press release, these were only talked about by Mayor Wayne Brown.
Auckland Transport’s press release provides some safety stats, noting that “barrier arm collisions accounted for 68% of all events“.
Between 2013 and 2025 a total of 1,242 level crossing collisions and near-miss incidents were recorded in Auckland.
- Pedestrian Near Misses: Total (321) Glen Innes Crossings (18), Takanini Crossings (68)
- Vehicle Near Misses: Total (126) Takanini Crossings (29)
- Road Barrier Arm collisions: Total (1102), Takanini Crossings (212)
Also notable is that the bridges getting started on now are the three pedestrian ones that AT consulted on a few months ago, and which are likely to be substantially completed over the upcoming summer shutdown. The road bridges could be years off starting.
From Auckland Transport:
Pre-construction works start this week, with main construction of new bridges at Takanini, Te Mahia and Glen Innes stations starting during summer.
…..
In addition to work starting on station bridges, essential work on the road bridges is underway. This includes property acquisition, geotechnical investigations, further developing designs of the new bridges, tendering for a construction contractor and further community engagement in the coming months.
…..
“Auckland Transport has progressed from funding approval to breaking ground for the projects in just six months, there’s a lot of work to get done but people can now see things are happening.”
About 200 construction workers will be employed on the projects this year, with a similar number of construction jobs in the coming years when road bridges are being built.
It’s also likely that AT will need to stage the road crossings, both to minimise disruption and so that there is still a viable way to get across the tracks.
I get why these crossings are being done first, but personally, the lack of progress for level crossings on the Western Line is very frustrating. This is especially so as the numerous level crossings are cited as the reason train frequencies on the Western Line will be limited after the City Rail Link opens – to the point that counter-peak frequencies (e.g. heading west in the morning peak) will be reduced, so that the total number of trains travelling across level crossings will be the same as it is today.
To that point, AT’s press release says:
Auckland Transport is seeking funding to continue planning work with the Government, Auckland Council and KiwiRail to determine the best approach for removing level crossings on the Western Line, likely required in the 2030s to support passenger growth. Work is underway, including early engagement with elected members, freight and business stakeholders.
AT provided me with a briefing on their work for the Western Line crossings last month, but it doesn’t provide me with a lot of confidence. They appear to be taking the same approach as they took with the failed Connected Communities programme – with separate business cases for every crossing, and the engagement with elected members sounding very high-level on the issues and trade-offs.
They did include this, on the high-level affordability for work on the Western Line:
- Separating all 21 crossings would be in the range of approx. $5 billion
- Closing all crossings with mitigations including pedestrian access would be in the range of $1b
- Separating strategic road crossings and providing pedestrian crossing and mitigations would be in the region of $2-2.5b

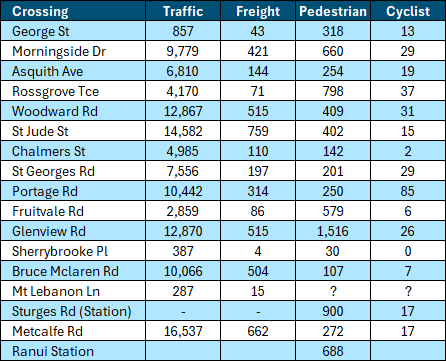

There was also some interesting information that they provided on the crossings. These are the traffic volumes across the various crossings along the line – though it seems to be missing a few of the station-related pedestrian only crossings, like at Baldwin Ave and Avondale:
From what I can tell, Metcalfe Rd and Walters Rd are neck and neck for the busiest level crossing for traffic in the region.

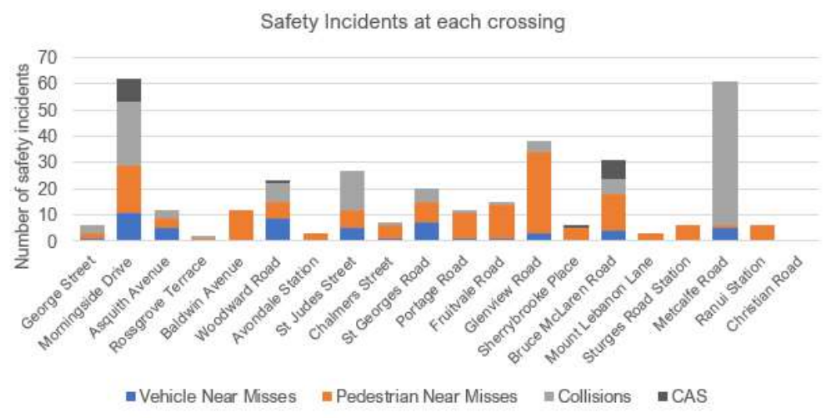

Also, there is generally a high correlation between volumes of usage, and safety incidents.

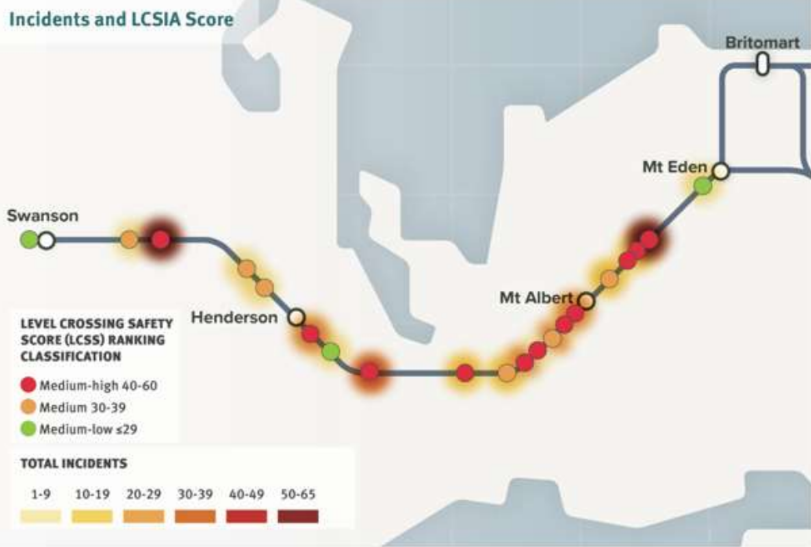

Auckland Transport also says that over half of the crossings have a medium-high Level Crossings Safety Score, with Morningside, Glenview and Metcalfe having the highest safety risks.
Auckland Transport has previously said that the general plan for the Western Line is to do the inner-west first, as that would then allow them to add additional train services to that part of the line sooner.
However, they are considering doing some of those higher-risk crossings first. Hopefully by removing the highest risk crossings, it might give some comfort to allow for some frequency improvements over the whole line.
The upcoming changes to the Unitary Plan are also likely to put increased pressure on the need for AT to have solutions for the Western Line. A lot more housing development will be allowed around inner west train stations – and if that is realised, it will mean more services will be needed sooner.
At the same time, and perhaps even more importantly, the longer this is left, the more costly property acquisition is going to be and the higher the risk of development of sites that are needed for upgrading level crossings with bridges.
