This is a guest post by reader Grant A, the second of a pair about how to fix Broadway. If you missed the beginning of the show, here’s the link to Act 1 from yesterday.

Yesterday, I discussed changing traffic circulation around Broadway in Newmarket. This included implementing a car-free transit mall, full bus lanes and protected cycle lanes. Today, let’s look at some more options, what to do north of Remuera Rd, and the vast amounts of car parking available in Newmarket.

(Today’s header image was created at Dutch Cycling Lifestyle)

Looking north along Broadway, Newmarket with left turn into the one-way Morrow St.

Filtered Access through Nuffield St?

The more I worked on this, the more I thought general through traffic should be prevented from going through Nuffield St, if we close through running on Broadway. So just allow buses, bikes, small wheels & pedestrians. There are actually three roads that access Nuffield off Broadway, they are St Marks, Mahuru & Balm. All these roads are pretty wide and Google Maps etc will surely suggest taking these ways instead. This could lead to rat running & undesirable results but maybe just the inconvenience would be enough for most people to switch to Gillies Ave, St Marks – Remuera?

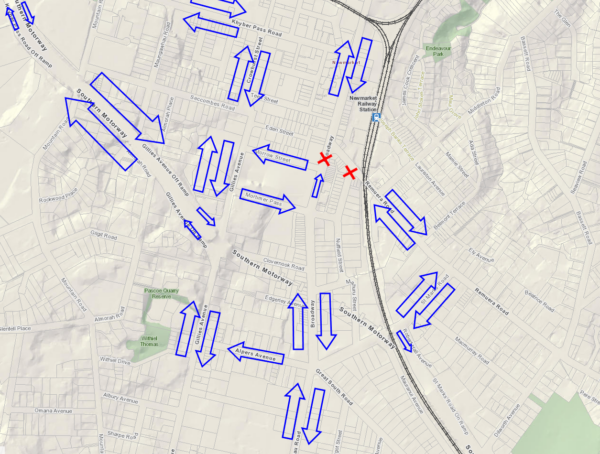

Close-up view of main traffic flows – Option 2 with filtered access through Broadway & Nuffield St.

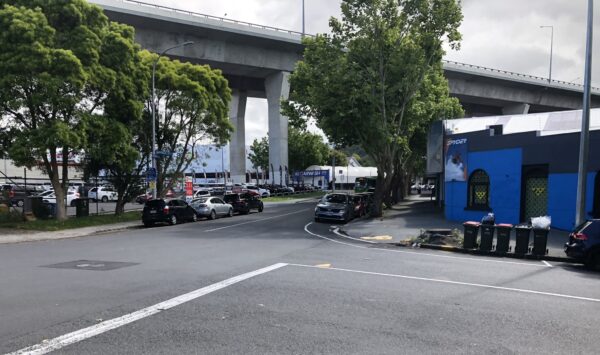

Corner of Nuffield & Mahuru Streets where the Inner Link bus loops around for example.

So filtered access may need to be provided through here (for active modes and Rail Replacement Buses). Nuffield St could have the footpaths built out and prettied up as well at the Remuera end as a result.


Other or Additional Options

Option 3 & Combined with 2

In this option, we make a transit mall in the longer section between the two one-way pairs of Mortimer Pass & Morrow St (leave in the slip lane from Remuera Rd into Broadway).

This could be nicer & is quite similar to Option 2 in effect as there are no other vehicle accesses needed between.

Perhaps both options could be combined. This could be really nice, making an even longer transit mall plus the east end of Morrow St could be made a pedestrian-only area or beautiful pocket park. The only issue I see is cars wouldn’t be able to get down the one-way Morrow St apart from via Gillies Ave, Eden & Bourke St under the Wilson parking building. You could make Morrow St two-way instead but it would mean extra expense, traffic lights at the Broadway intersection & light phasing complexity added to the Gillies Ave one.

Looking down Morrow St, next to Westfield Newmarket.
The other one-way of the pair around Westfield is Mortimer Pass.

Option 1

You may have been wondering what happened to my Option 1. It’s basically the status quo, but with bus and cycle lanes added, and with no-right-turn out of Nuffield St as per the other options.

Under this option, I also allowed a general traffic right turn lane from Broadway into Morrow St (see image below). This means there was only room for a northbound bus lane between Morrow and Remuera Rd (there are currently none in this section of road). Leaving in the slip lane also makes the bike lane design complex and/or dangerous. So you can see why I quickly moved on from this option.

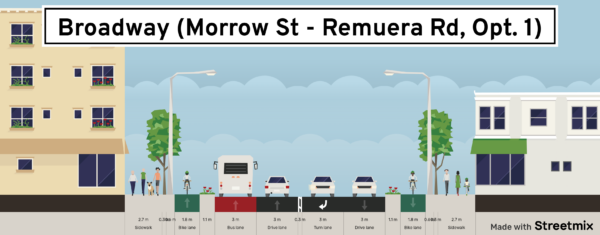

Less desirable Option 1, where there would be a gap in the southbound bus lane.

Parking Intermission

“But what about parking?” The thought is any loss of parking from Broadway itself is counterbalanced by existing parking on side roads and the multitudes of off-street parking options. There are 13 public car park buildings around the precinct, and pay and display spaces on many of Newmarket’s streets.

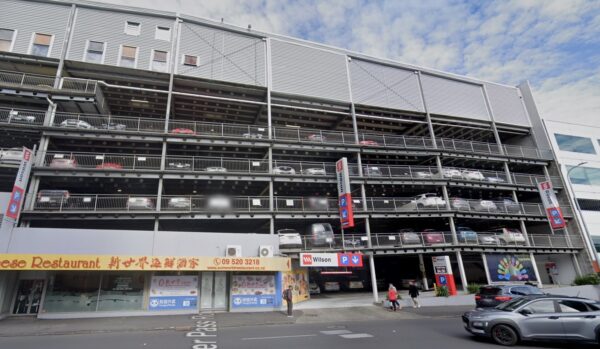

Wilson Parking on Khyber Pass Rd. Image: Google Streetview.

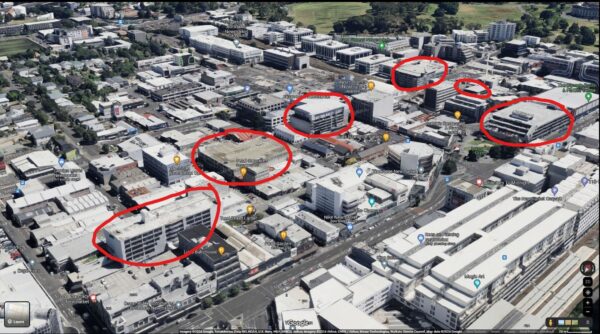

Some of Newmarket’s Parking Buildings.

The multi-storey Wilson carpark on Eden St has 370 spaces. There are 518 spaces in the Davis Crescent car park. Westfield itself has around 2,700 parking spaces.

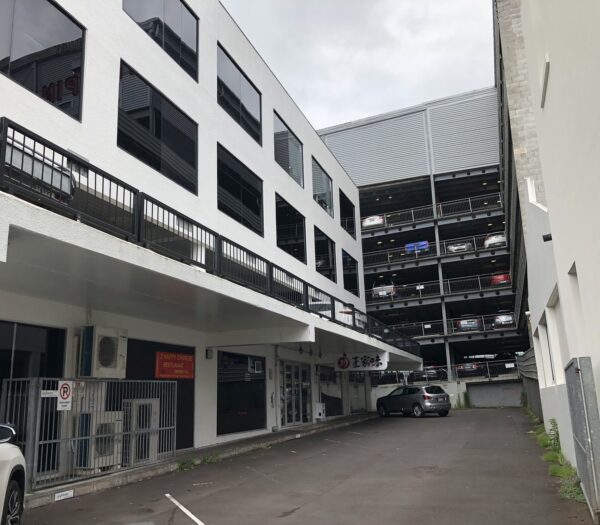

Wilson Khyber Pass parking building viewed from Kent St.

And to replace the loss of loading zones and quick parking on Broadway, you could prioritise areas on side roads where some of the current longer-term on-street parking is.

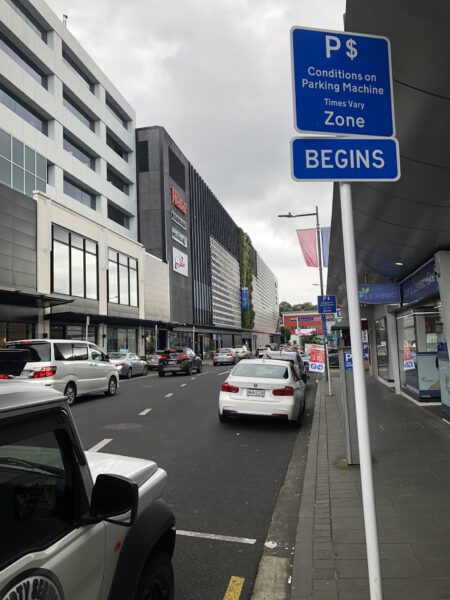

Paid on-street parking on Morrow St.

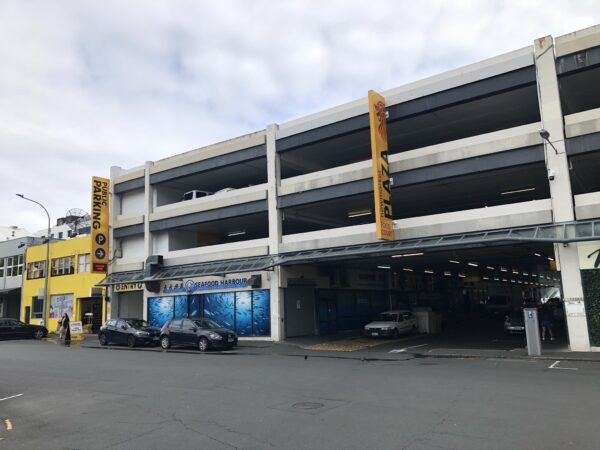

Newmarket Plaza Carpark – 290 spaces in this multi-level building off Kent St.

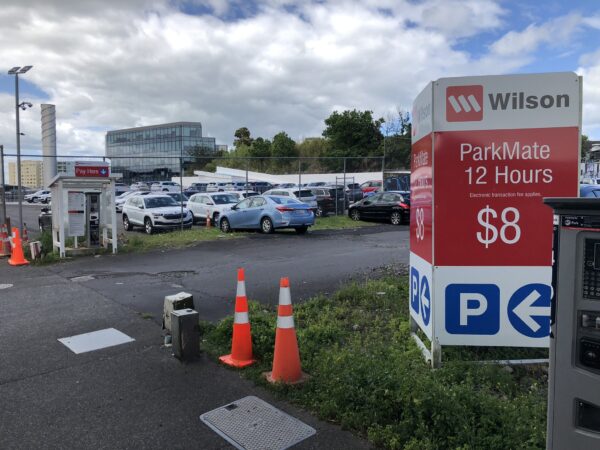

Wilson open-air parking on Mahuhu St.

North of Remuera Rd

Back to the street layouts on Broadway, moving further north.

Here’s a suggested midblock layout for Broadway past Remuera Rd. Note you can combine the widths for the light pole, tree pit and footpath (2.3 + 0.4 + 0.6 or 0.5) to give around 3.3 m total on each side. At the corner turning left into Khyber Pass, you can obviously keep the indented bus stop with a general turning lane, or create more pedestrian space.

Broadway looking south from the indented bus stop near Khyber Pass.

I note that Broadway is a designated over-dimensional route, so I assume it wouldn’t work to have a central raised median consisting of trees or planting; instead, how about more garden on the sides with a narrower than otherwise painted median? And would two 3m lanes be wide enough, albeit large and high loads may sometimes need to straddle the lanes in order to avoid the traffic lights?

From the section over top of the rail lines looking south toward the Khyber Pass intersection. The corridor narrows here.

North of Khyber Pass – Shared Path

Past Khyber Pass, Broadway is less broad, narrowing down from about 25.5 m to 20 m between property boundaries. The bus lanes can continue through here, but bike lanes may need some thought: I’d suggest a section of shared path on the west side to save some space past the swimming pool, which could then merge nicely with the pocket park area before the roundabout.

North of Past Khyber Pass Rd it narrows to 20 m Shared path on one side & slightly narrower lanes to fit.
Broadway looking north near the cinema & pool complex. Quite constrained on the left footpath.

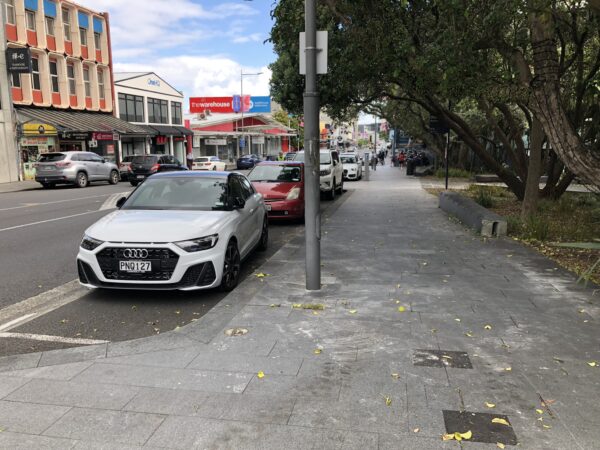

Olympic Reserve looking south

People on bikes could fairly easily make their way across the park to Carlton Gore Rd to join the cycle lanes there.

I’m not sure about the roundabout: you could perhaps narrow it up and make it into a full Dutch-style one with crossings on each leg similar to what’s been done in Glen Innes outside Tamaki College.

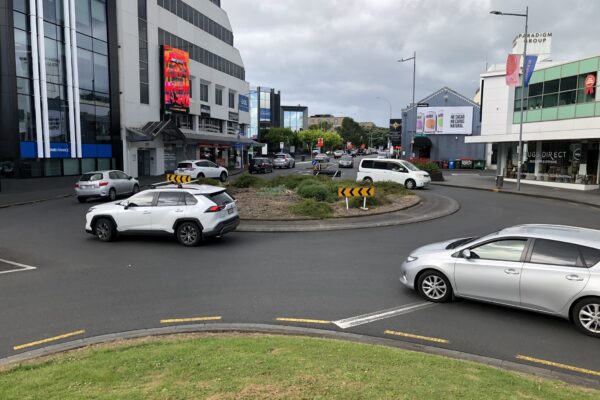

Broadway roundabout with Davis Cres looking north.

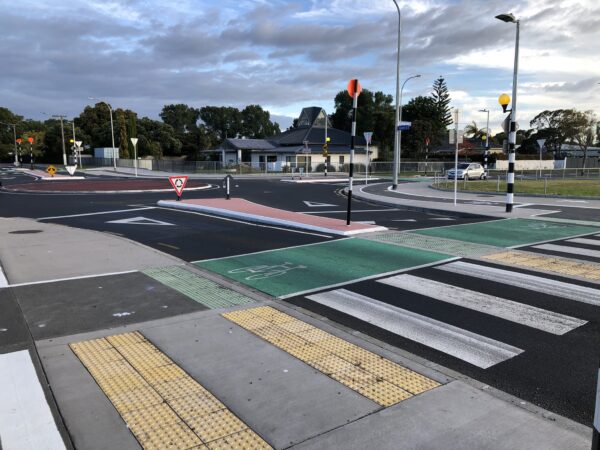

Almost Dutch style roundabout in NZ! – Taniwha St in Glen Innes outside Tamaki College.

And then, carry on with the shared path right up to Ayr St.

I’ve done more Streetmix mock-ups for further afield roads leading to and from here if anyone is interested. Note: you can edit them and it automatically creates your own copy (although be warned, it’s a highly addictive exercise!).

Also, Streetmix doesn’t have shared paths, perhaps because they’re a pretty Kiwi/Aussie thing? So I’ve used bike and scooter stand graphics to represent them.


Encore

Implementing even some of these ideas above is essential in supporting some mode shift to buses, bikes, scooters and walking, not only in this area but beyond. This will reduce the harmful effects of congestion, vastly improve the area’s environment, and reduce our emissions.

On top of that, I’m sure the businesses would also experience greater sales when people enjoy visiting a calmer and quieter street environment, with less fear of getting trapped in the epic traffic jams that started me thinking about this.

It seems to me we have had enough of thinking the old way about providing for “traffic flow” and parking; we need to start thinking differently.

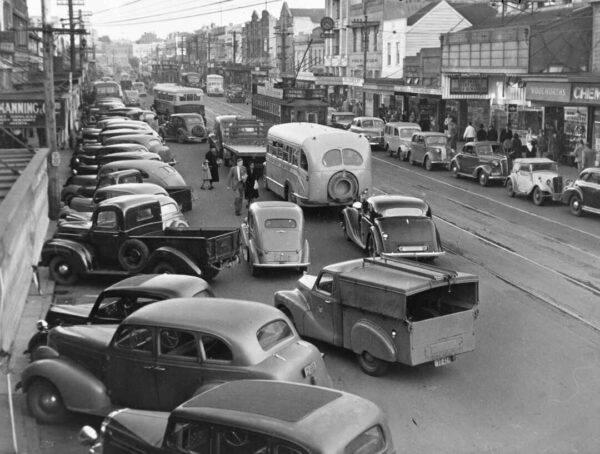

Pedestrians, cars, trucks, buses and trams on Broadway in Newmarket, Auckland c1950. (Unidentified photographer, New Zealand Free Lance: Photographic prints and negatives. Ref: PAColl-6303-12. Alexander Turnbull Library, Wellington, New Zealand. /records/23137883 )
