This post was originally published on Linked In by Nicolas Reid. It is republished here with permission.
Here’s the thing: the City Rail Link is almost certainly going to be overcapacity from day one, with crowding on the trains at peak times. In the simple terms of popular transport discourse, it’s going to “fail” immediately.
While the CRL greatly increases the capacity of the network with many more train services being planned, it won’t have enough capacity to avoid rush-hour crowding, and it won’t provide as good a service as anyone could ask for. That’s because, like any other transport link, the CRL is subject to induced demand: the simple effect whereby making transport faster, easier and more accessible means more people use it.
But that perceived “failure” at the outset is exactly why it’s such a good project.
Let me explain.
Successful transit works because many people share the same vehicles to do different things: that’s what puts the “public” in public transport. It’s also why public transport services aimed at doing just one thing – like peak commuter buses, or airport express trains – tend to be less effective or economical. They just don’t serve enough transport sub-markets to attract a large enough user base to gain constantly high ridership.
By contrast, the City Rail Link simultaneously achieves four big things for Auckland’s rail system:
- It doubles the number of tracks through the core of the network,
- It adds new stations in the middle and south end of the city centre,
- It provides a much more direct route for the western line, by cutting out the three-point-turn dog leg through Newmarket and the east side of town,
- And it allows trains to run through from one side of the network to the other.
This means that from day one, the City Rail Link will effectively double the number of trains that can run across the system. Current and potential passengers at every station in the region will enjoy the benefits of more frequent trains, which includes more seating capacity, shorter wait times, and more flexibility on when they can travel. In this way, the “city” in City Rail Link is about everywhere else, not just the centre of town.
Of course, the new stations will provide direct access to parts of the central city that have Aotearoa’s highest concentrations of people who work, live and study – but who are currently a long walk from the sole downtown station, Waitematā (formerly Britomart). This will open up a lot of new access for many people who’ll find convenient train travel from their doorstep and work, home or school.
At the same time, the shorter route from the west will shave ten minutes off most trips on the western line. And, for a swathe of people living within a walk, bike or short bus ride from western line stations, this will make the train much more attractive and competitive compared to driving or other modes. Likewise, the new ability to catch a through-running train will make trips from one side of Auckland to the other much easier and more appealing for many more people.
Does the CRL do all these things perfectly? No. Does it do any of these things perfectly? Well, no, not that either. A “perfect” rail project for Auckland – on paper, at least – would provide vastly more capacity on day one than we could conceivably need for decades or even a century. It would also have many more stations, here and there, in other parts of town that don’t have stations yet. Plus, it would carve its way across and through the landscape to straighten out all of the curves, giving more direct routes and allowing trains to run from everywhere to everywhere.
But the thing is, this “perfect” day-one combination is perfectly unachievable in the real world, not that they didn’t try.
In the lead up to the CRL being approved there were calls for it to have four tracks with doubled-up stations, like those in Melbourne or Sydney, to add twice as much additional capacity. However, that would have meant a much more complex two-level tunnel with huge double-decker stations to fit under the road corridors.
For a while, the preferred option was to build a new terminal station between Mt Eden and Kingsland station, where all the trains could run through the tunnel and bounce back, avoiding some conflicts at junctions and allowing more trains to run. But this would have meant building a big mess of platforms and trackwork, and it would have resulted in a lot of near-empty trains moving back and forth through the centre of the network, of little use to passengers.

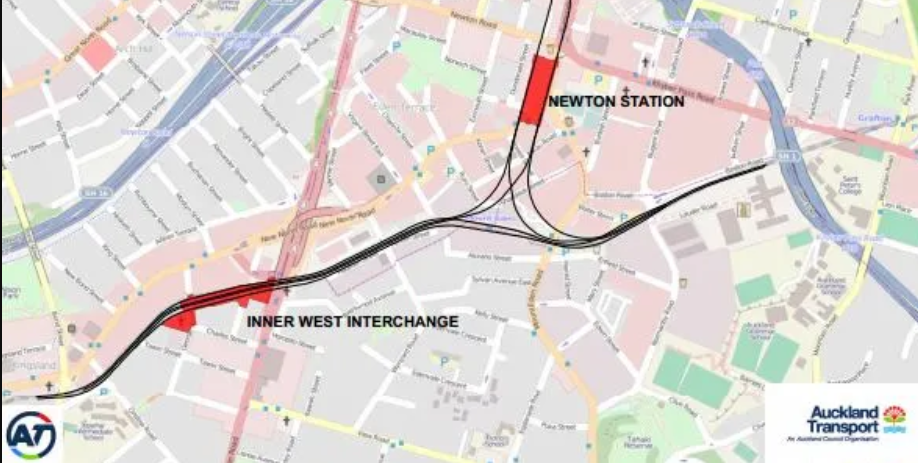

Likewise, for a while there was an extra station (Newton) planned for the top end of Symonds Street. This would have required both a tricky underground junction, and a super-deep station box accessible only by express elevators from the surface. Ultimately, this difficult and expensive station was dropped in favour of expanding the existing Mount Eden-Maugawhau station nearby.
At the time, there was a campaign of thinly veiled concern-trolling claiming the CRL hadn’t planned enough stations, and that to be worthwhile, it would need to swing over to Wynyard Quarter and then double back to the middle of town before carrying on to the universities. However, such a plan would have doubled the length of the tunnel and doubled the number of new stations, effectively doubling the travel time… and doubling the cost.
In short, for each of the things the CRL will do, there were people saying that it wouldn’t do enough, and proposing huge expansions to the scope of the project to further increase future capacity, improve travel times, or add extra stations. But if these things had been acted on we’d not be looking at a 2025 opening date for the project, and we might not be looking at an opening date at all.
They say politics is the art of the possible – and transport projects are very political.
The CRL is the best project for Auckland because it is the one that Auckland is actually building, and will actually open and operate. It improves on all the things it sets out to do: it doubles capacity on the network, has two new stations in the priority locations, and it makes routes faster and more useable.
While each of these might not be the perfect ideal for each goal, the point is that the CRL achieves its goals within a project scope that has proven politically viable, reasonable to procure and construct, and perhaps most importantly of all, fundable. This is due to the fact that the CRL is pretty much the simplest and easiest version of a city rail tunnel you could design for Auckland. The route is a near straight line on the shortest alignment possible between Britomart and the Western Line. The two tracks are the minimum you need for an effective operation. And the two new stations are as few as you could consider to provide access to and for the heart of the city.
In other words: the City Rail Link is literally the minimum viable product for delivering on its goals, and because of that it is affordable and cost-effective enough to actually proceed, and because of that, it will soon be up and running and delivering all the promised benefits. Yes, there have been delays, construction complexities and cost increases, but these have been relatively minor and manageable. Certainly, the “blowout” is nothing in comparison to what they might have been, had the tunnelling been loaded with umpteen billion dollars’ worth of scope creep and additional infrastructure aimed at chasing down marginal benefits.
Undeniably, the CRL won’t deliver completely on every aspect. Double the capacity won’t be enough for peak hour in the long run, and crowding will still happen in the future – but it’s still double the capacity, which means twice as many people being able to travel at peak time by train. And even if the trains are still busy on weekday mornings, there will be twice as many of them, which means twice as many travellers and twice the benefits to travellers.
This is the key difference between transit projects and traffic projects.
Traffic projects do fail, by “falling over” when they get full, because traffic congestion slows down all the vehicles on the road, drastically reducing the capacity and reliability of the corridor, and spreading that congestion through the network to clog connecting roads and streets as well. On a highway, being over-capacity (where there are more vehicles than can fit on the road at the same time) is indeed a failure of the network, because the cars just keep piling up in the queues.
The irony of traffic is that the best-performing roads – in terms of speed, reliability and accessibility – are the ones that almost nobody uses.
By contrast, on a rail line being overcapacity is a different kettle of fish. It’s when you have more people show up than can fit in your trains, not where you have more trains than can fit on the tracks. Congestion effects on the trains themselves are minor, and are much less likely to cascade across the network, because the vehicles are controlled by the operator rather than the users.
The folks at CRL know that they can run about thirty-six trains an hour through the tunnel before things get properly “congested” and clog up the network, so that’s the most they will run on opening day. If that doesn’t quite meet demand, then some potential travellers will get left behind, perhaps for a quarter of an hour or at least until the peak of the peak is over and they can hop on one of the next trains. But nonetheless, at full peak capacity, the line still functions for those who are on board, carrying the full amount of people that the line can possibly carry, at about the same speed and only slightly less comfortably than if nobody at all was riding the train.
This is a huge difference that road users and traffic engineers probably don’t appreciate when they put their minds to public transport. With transit, providing the full capacity to meet all conceivable peak demand doesn’t really matter. In fact, trying to do so is often a hiding to nothing. Literally.
Auckland’s transport history is a litany of grand, excessive transit schemes that never went anywhere because they zoomed in on maximising all possible benefits without worrying about cost and deliverability. The City Rail Link bucks that trend by delivering a mountain of benefits and improvements, albeit imperfectly, at a perfectly viable scope and price. The fact that, in conventional traffic-engineer terms, it may “fail” by quickly becoming a victim of its own success in reality, rather than working perfectly in some never-never fantasy, is exactly what makes it the perfect transport project for Auckland.
Now, what other pressing transport gaps can we solve by right-sizing the approach, so we can get cracking and deliver the benefits within a decade?”
