So the Auckland Plan has been adopted and Albany has been confirmed as a “node“, alongside Manukau and Westgate. This begs the question of what we might need to do to Albany, for it to actually fulfil its potential? This job is not made easy by the worst street layout of any major centre in Auckland:

Let’s run through the problems we are trying to fix here:

  • We have a university campus but it’s on the complete opposite side of the centre to our rapid transit station.
  • The centre is separated from the surrounding areas on all three sides by large, high-speed roads, the motorway, Albany Expressway and Oteha Valley Rd. It’s similar how the central motorway junction creates a noose around the city centre.
  • There’s a disconnected street network which concentrates traffic onto a few roads prioritised for vehicle flow, which inevitably are horrible walking environments.
  • The loopy street network layout makes running efficient bus services through the area extremely difficult.
  • The Westfield mall creates a huge barrier in the middle of the whole area, acting as a huge superblock that’s at least half asphalt

I could go on for a while… but let’s look at what the key components of “success” might look like.

  • A high density mixed-use urban form with intense residential, commercial, retail and other activities
  • A high quality, legible and convenient pedestrian environment
  • Easy to access rapid transit for the whole centre
  • Properly integrating the university into the rest of the centre – it should be one of Albany’s greatest strengths
  • A much more fine-grained street network so that traffic isn’t concentrated on a few massive roads and to make it much more direct for people who are walking, cycling or using PT to get around Albany

As you can guess, this is not going to be achieved through a bit of tinkering here and there. We are going to need to think about Albany in a fundamentally different way. We are going to need radical change.

Let’s start with how you might better serve it with rapid transit. Firstly though, the NZTA have already started on the Northern Corridor Improvements Project which includes an extension of the Northern Busway. The busway will travel just past the Albany Busway station before pulling a 180 on a bridge over the motorway and back into the busway station. ATAP also says that bus shoulder lanes will be added to SH1 north of Albany as a 1st decade project.

Longer term, ATAP confirms the plan is to upgrade the busway to Light Rail.

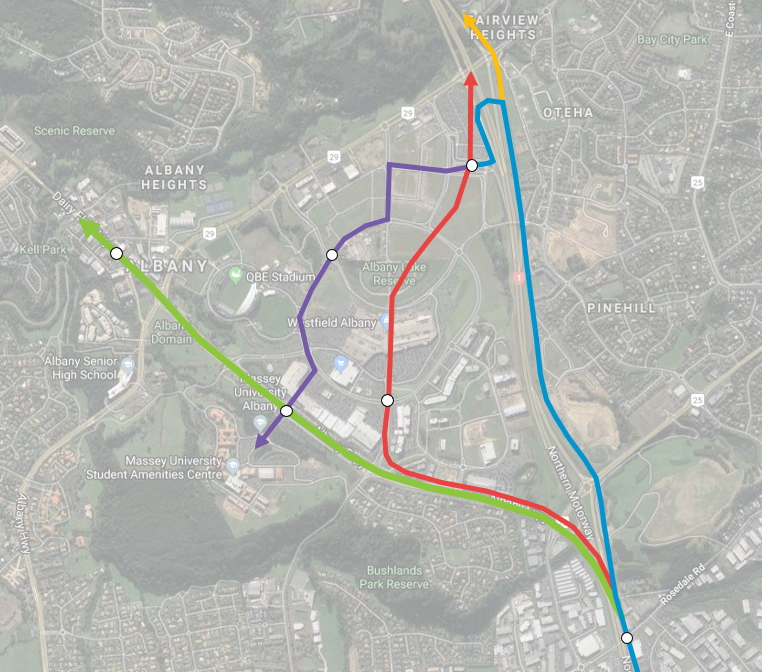

The busway extension (shown in Blue below) will largely lock in place the current situation for rapid transit but that wasn’t an issue, I think broadly you have three options:

  1. Create a branch at the Greville Road interchange, with one branch following the planned Northern Busway extension’s route next to the motorway and the other branch following Albany Expressway and potentially up into the future development around Dairy Flat (Green). This would allow it to serve some of the southern areas of Albany along with the original Albany village.
  2. Redirect the entire corridor through the heart of Albany, possibly underground in parts depending on the route (Red). It could also skirt around the mall. This would have the advantage of allowing a station to serve the southern half of the centre.
  3. Albany is a natural place to terminate some services and we see that already with not all NEX buses travelling on to Silverdale. We could extend the route of those terminating buses slightly and hook them back through the heart of the centre to the University (Purple).

None of these are particularly great options (what did I say about it being hard to fix Albany?) but out of them all, purple is probably the easiest and provides the best links within Albany. As long as the trip is quick and efficient between the University and the busway station, the whole “going north to go south” might not be a huge problem.

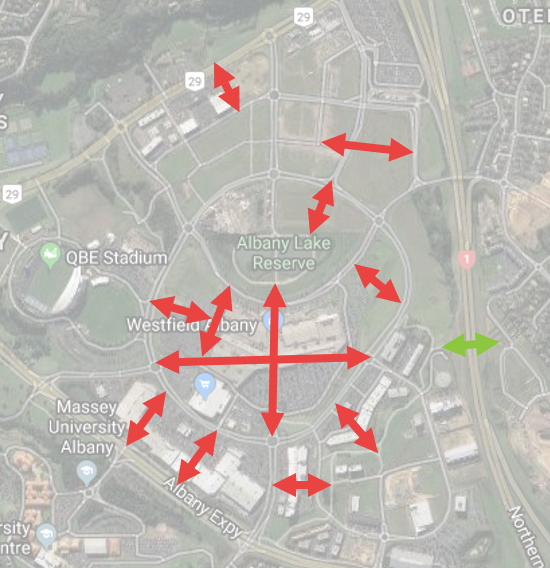

Our next problem is fixing the street network. At the northern end of Albany you can see a finer-grained street network is starting to emerge which is positive, but further south the disconnected network is a disaster that will be really really hard to fix. The number of extra connections that would be required is tremendous:

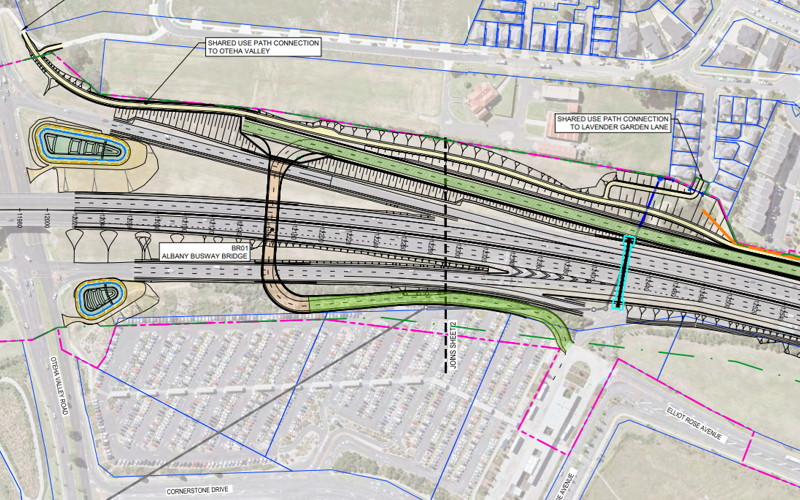

The green connection is a bridge currently under construction by the NZTA. There’s probably some that I’ve missed to the south and also to improve permeability through Massey University’s site. But the general picture is that basically we need to demolish most of Albany and rebuild much of the street network from scratch. Comparing Albany with Parramatta at the same scale really highlights the desperate need for a finer-grained street network:

Ultimately I’m not really sure it would be worth it to go to such extreme lengths to fix Albany. We are looking at massive investment to properly serve it with rapid transit and huge property purchase costs and disruption to build a proper street network. Even then you’re ultimately focusing on a place that still sits at the edge of the Auckland urban area. If Dairy Flat fully builds out, then maybe Albany could start to be something like Parramatta. But the screwed up layout of the whole area makes me sceptical that most of the area will ever be much more than a car dependent sea of carparks. Perhaps at its northern end where there’s more of a street grid and where you’re much closer to the busway station we might get something that properly resembles a high intensity mixed use centre.

But will Albany ever be one of the four most important growth nodes for the entire Auckland region? I won’t hold my breath.

Share this

88 comments

  1. There’s another way to improve connectivity – leave the original roads in place but have a strategy to add a network of pedestrian and cycle lanes where there are not currently roads as development is added. If those lanes can be planned to create the finer network and allow more direct travel for people walking and on bikes then parts of it might be saved. Obviously this would involve council working closely with land owners and developers to get them in the right places and presumably purchasing them for the public good as they are created. I’m thinking the Dutch ring roads around the outside with permeability for people within concept.

    1. My vote is to create an urban spine comprised of a bus only street with cycleways and walkways. This would run on a more or less straight line from Albany station to Massey University. It would skirt the lake, slice across the mall carpark and give access to its.west side, and the cut through the big box strip mall (taking out one of the boxes and regigging the parking in the process).

      NEX buses that currently stop at Albany Station could then run down this urban busway, stopping two or three times before terminating at the university.

      Small lanes and pedestrian paths could then hang laterally off this new spine, creating a fine grained grid within the ring road.

      1. LIke the purple line above, but more direct on a new roadway. Let the cars use the ring road around the outside, and the buses and people cut through the middle.

      2. I think you need to have the ‘ring road’ concept outside at least some existing (newly) walkable residential catchment, such as that surrounding the Bushlands Park Reserve. Hence why I think the Albany Expressway needs to be removed from the arterial road network, and reallocated to other modes. 🙂

      3. I like the idea of a transit corridor from the Albany busway station to the university. Perhaps shared spaces on the Fort street model if any form of cars or delivery vehicles are to be allowed. Pubs, cafes, and university townhouse accommodation. If the the area gets some vibrancy you may entice some of the retail outlets from the mall. Will need covered (basic main street type veranda/awning) walkways back to the mall.

        It is a very long time since I visited Albany, and had forgotten just how bad it is. I am struggling to remember any Australian examples as bad, in its total devotion to automotive sprawl, a couple of US examples come to mind from my experiences.

        1. Irvine, Orange County CA? Especially around UC Irvine.
          Driving through that was a real eye opener.
          How can your 14 lane freeway be congested at 11 am on Sunday?!

          1. Yes Heidi Not only take up less space but if you replaced half of the parking with natural vegetation you would reduce the overal temperature too. The paving would absorb the heat during the day and release it once the sun goes down.

          2. Yes, and of course the road runoff! I wonder who’s downstream of their stormwater network. Imagine the one day of rain in October that they have, on average, after 5 full months of no rain. Would anything survive in the waterways with all those chemicals?

  2. The extraordinary thing about Albany, especially considering it was designed from a blank start, is how it fails in every single way; it’s completely appalling to try to access by driving too! Those circular roads set up such a terrible and inflexible pattern. Someone was trying to plan a mini Canberra, as far as I can tell, complete with a blocking lake, and as matt observes, very hard to fix… so rigid, it does the reverse of what makes for thriving new urban places; enabling incremental organic growth at a variety of scales, natural and intuitive connectivity, ands great access. And some surprise, delight, irrationality…

    Such a clumsy and bullying pattern. And it hasn’t attracted development at anything like the rate it should have… Of course neither did Manukau City for decades either, and will Westgate?

    We just have to accept our current processes for city making on greenfields peri-urban sites, both public and private, are really poor.

    I suspect that this has to do with suburban habits and regulations built into our systems, because mostly what has been developed since the middle of last century has been monotonal dormitory single house sprawl. These centres are i guess what you get when sprawlistas try to build something urban….?

    To retro-fix connectivity to the Rapid Transit Station, especially the Uni? Probably a high frequency shuttle, perhaps arcing round to also connect to the coming Rosedale station too, so people can jump on it in either direction to connect to either station as suits, depending on their direction of travel or whichever is closest…?

    1. Yes, the PT access issue is a major one, and the idea of a shuttle connecting Albany and Rosedale via the town centre (if that’s what you can call it) and University is a good one. Interesting to note that Matt’s other suggestion, extending the NEX to the University, was the original operating pattern IIRC for every second service terminating at Albany. Back to the future?

      1. Ask Lee Beattie from the Planning Dept at University of Auckland, I know from studying there that he worked on it. He admitted at the time that they got things wrong, at least in respect of allowing big box in what was supposed to be a more fine grained urban centre

        1. They should have made it fine grained, urban, and central then.

          Albany is edge sprawl, the very opposite of those things.

    1. Just change “Memory” to “Albany”. Most of the lyrics are just fine as they are. I particularly like:

      Midnight not a sound from the pavement… Every streetlamp seems to beat A fatalistic warning… I must wait for the sunrise, I must think of a new life, And I mustn’t give in.

      🙂

  3. There needs to be more public transport along the Albany highway route with the four schools (and uni). Also more options for getting to the industrial areas by PT. It’s so car centric. Horrible place to get to.

  4. Except Patrick Manukau is built to the traditional street grid with large grass medians making eventual retrofitting extremely easy to do. A Light Rail Line here, a pedestrian mall here, a cycle boulevard here and a pile of hotels over here and seems we are on our way after 30 years of dormancy.

      1. Didn’t the former Manukau council keep throwing money at it to try and turn it into something it will never be? The real question is when will they give up on it!

      2. Already have since the Panuku Transform Manukau or rather now Our Manukau Framework Plan went live in 2016/7.

        Some improvements:
        1) Manukau Bus Station and Putney Way
        2 Barrowcliffe Place
        3) Lakewood Plaza with Lakewood Court under consenting
        4) TSI Social Initiatives including a Co Design like Lab to be established
        5) The Southern Airport Line – Manukau to Airport section is due for shovels in the ground end of the year
        6) New civic building next to the existing one while Kotoku House might end up as a hotel
        7) Manukau Plaza Saturday Markets and activation
        8) Another hotel being built next to the Vodafone Events Centre

        8 improvements for the Manukau area with plenty more to come

  5. Good luck rearranging the deck chairs on the Titanic. It’s a fools errand. Demolish it all and start again. And do it right this time. ie, the opposite of everything that was done there originally.

  6. That green alignment wouldn’t be much longer than the motorway alignment to get to Silverdale and would cross over the CENTRE of Dairy Flat.

    I think it would be a more useful alignment for the light rail upgrade. It would be more expensive, though. South-of-the-bridge types could actually walk right into a North-Shore town centre… (petty crime!)

    Perhaps the eastern half should be left to the motorway that provides its most convenient access? And buses, of course.

    1. A ring road of roundabouts?
      Perhaps the road designer derives an unwholesome enjoyment from roundabouts and lives nearby.
      Millwater has a ring road of roundabouts too.

          1. Make the central loop a big roundabout too and try and take the biggest roundabout title from the basin.

  7. Each road-circled “block” of land north of the lake seem purpose designed for one or two big box retailers with an associated sea of carparks. An almost dystopian urban landscape built purely for ugly, souless, US style big box commercial activity only accessible via car.

    An ocean of Mtire 10s, Bunnings, Pak ‘n’ Saves, Noel Lemmings, K Marts, and Rebel Sports selling to aspirational suburban middle New Zealand. Sounds like an alternative ideological vision for the future completely at odds with the purpose of this site, and hence why the whole place is regarded as a complete disaster from a more enlightened perspective

  8. Having lived in Bushland Park Drive shortly after arriving in Auckland, I can say from personal experience that the Albany Expressway creates an incredible severance.

    If we can underground 100m of the expressway (probably not), we should create underpasses aplenty. Northern Rata Place, Bush Rd and several by the uni would be a good start. Your next challenge would be to integrate the village with the development, underpasses for Oteha Valley Rd?

    Fixing Don McKinnon would be an interesting challenge.

    I personally don’t like underpasses very much. They tend to be small and claustrophobic and make great places for criminals to hang out. None of those issues are unresolvable, but all resolutions carry cost. The question is do we want to have big, open and well lit underpasses or cheaper ugly bridges? Neither addresses the issue of the above-ground road destroying the livability of the area…

  9. The Albany Heights area is a disaster as well. There is not even a pedestrian connection with the Dairy Flat Highway, people walk on the narrow shoulder to get down to the shopping area. Thre is a bus connection, but it is not frequent. It is totally car dependent and is stuffed full of people whose measure of success seems to be the largeness and shinyness of their black SUV.

  10. Good post Matt. Albany is the absolute pits with the University and four separate shopping nodes which are not easily accessible other than driving between them. Its a nightmare for walkers. The mind boggles as to how this comparatively recent design could be so bad.
    But teenage girls (and sometimes boys) like parading in the Mall oblivious to the planning nightmare the whole Albany area is……………………not sure what the answer is.

  11. I spent time here growing up, and too much time working in it in the last 18 months on a contract. It has barely changed in the last ~17 years I’ve been around the area beyond the mall and a strip mall opening and the poorly placed bus station. To be honest I don’t know why we even talk about Albany – it’s a dead lemon, no one wants anything to do with it. Compare the amount of business here vs between rosedale and constellation (on both sides of the motorway) and I wonder what the thinking is – the market has kind of spoken on this front.

    The inner loopy loops need to be straightened, the roundabouts removed, the density needs to explode and proper rapid bus links to all of it (including the business area in Corinthian drive).

    The park and ride needs to be rebuilt as intensive living and working.

    The suburbs around it need to be intensified also.

    But none of these things are going to happen – the whole node concept is bullshit, it’s at best going to be another low rise business park/warehouse area, as seen around constellation.

  12. “the screwed up layout of the whole area makes me sceptical that most of the area will ever be much more than a car dependent sea of carparks”
    You won’t remove car dependence by adding more roads.
    I agree with Simon, make most if not all of your wanted links pedestrian / cycle plazas. Start with connecting the rapid transit station with the mall as that seems to be something bugging people, and then onto the university campus.
    Yes the shopping strip between Pak’n’Save and Massey’s Albany campus is a major block but if you are looking for a pedestrian/cycle access way rather than a road connection a much easier fix. With the loss at most of one store or a few metres off two adjoining stores while leaving the roof line intact.
    Add in safe points to cross in and out of the triangle and a shared cycle scheme for those arriving in the area by public transport.

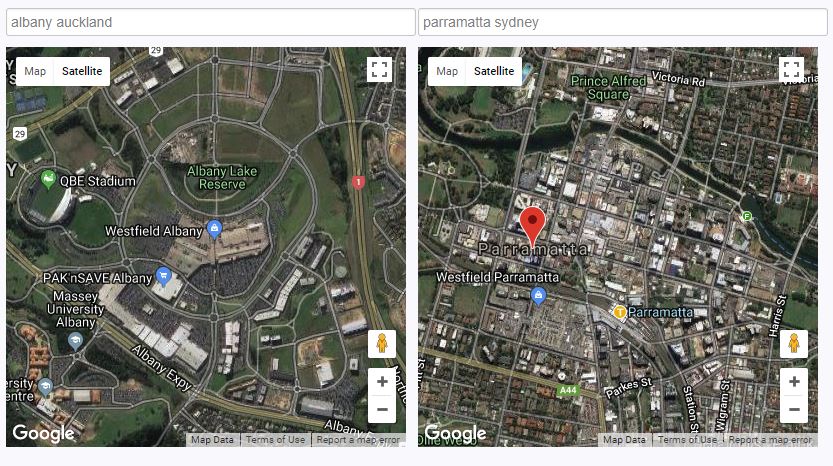

    If the area is to become anything like Parramatta then mixed used must be encouraged. Having large areas dedicated to only one use, whether that be homes or shops, is not how towns have developed over the centuries. Why do we not have more mixed use developments? Retail, office and residental in our town centres.
