In the last post we looked at the current Wellington rail network and its more recent upgrades, in this post we are going to look into the future upgrades. Wellington has submitted budget bids for around $200 million with the new Government in line with Greater Wellington Regional Council’s Wellington Regional Rail Plan 2010-2035.

As a reminder, here’s a diagram of the Wellington rail network:

Track Improvements:

  • Double-tracking Trentham to Upper Hutt. At current it is only single tracked between Trentham and Upper Hutt, which drastically affects reliability and capacity to Upper Hutt station. By double-tracking this section, which was estimated at only around $7 million, these problems will be solved increasing capacity. Given how cheap this is, I’m amazed it hasn’t happened sooner.
  • Plimmerton Station turnback and Porirua Station third platform. Building a turnback will allow more peak overlay capacity to be run from Plimmerton without having to run services all the way to the end. This is the same logic behind what we are doing at Otahuhu and Henderson. The third platform at Porirua allows the same as above but also allows through running thus acting as extra resilience if a track or train fault occurs. At the same time, power upgrades would also occur on the outer Kapiti line allowing longer trains to be run.
  • Fourth track into Wellington Station. This will provide resilience as well as capacity increase as Johnsonville line trains will no longer need to share tracks with the other lines. This will remove a flat junction movement and freeing up space for more trains for the other lines.

The councils says these upgrades will increase peak-time capacity on the Kapiti Line by 43 per cent and on the Hutt Valley Line by 33 per cent.

Wairarapa Upgrades:

Around half the $200 million investment is for the troubled Wairarapa line. A lack of funding means that this line has fallen into a state of disrepair in recent years, with services often cancelled, late or just plain slow. $90 million has been requested for bringing the line back up to standard.

I wonder if the Regional Development Fund would be perfect for this as this would be an investment in regional rail and something that would be ready to go. This would mean that normal crown rail capital allocation can go to other rail projects KiwiRail desperately needs.

Wairarapa Train

Getting the most of out these improvements to the Wairarapa Line’s track infrastructure requires complementary upgrades to rolling stock and better stations.

New Rolling Stock and Better Stations

The Government should also consider replacing the locomotive hauled old carriages with either new or second-hand diesel multiple units. The current trains are having trouble keeping up with the heat and replacing them which is now being considered.

These could be more comfortable, have higher capacity, potentially faster as well as be easier to operate from an operational point of view as they are bi-ended so can work in a simple turnback without needing two locomotives or carriages built for push/pull like the old Auckland carriages were. Getting the most out of these new trains would also mean running more off peak services, including trains at the weekend .

Fixing the Stations

The line has a weird mix of stations with many being in the wrong place which exists for historical reasons which no make absolutely no sense now, some stations there is about zero catchment with nothing around it. Having unnecessary stations slows down the service for users for little gain, while stations in the wrong place mean the service is not as usable as it could be.

There are also opportunities to add stations which could increase catchment and the usefulness of the line.

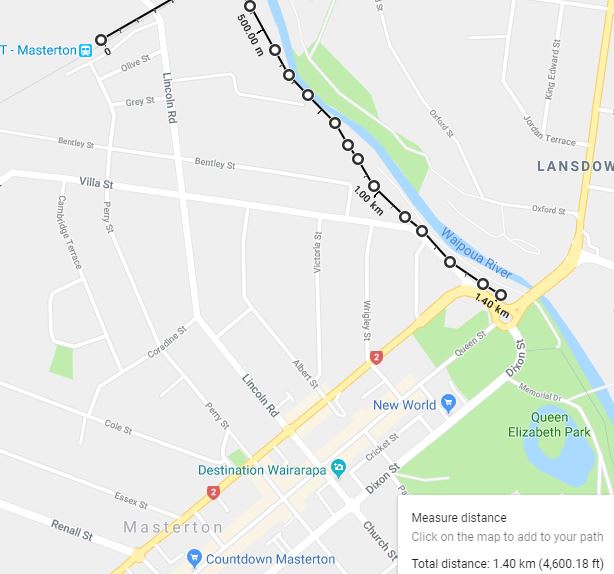

  1. By adding a small branch line through non-built up area you could bring rail right into the heart of Masterton via a new terminus station while also better serving Lansdowne.

    Masterton Spur
  2. Solway station is a little close to Renall Street station maybe moving the station a little further down the line may be worth looking into;
  3. Remove stop at Matarawa as it has no catchment whatsoever;

    Matarawa Station
  4. Doing an investigation into Woodside station and whether it would be better to simply have more frequent buses like the 200 connecting Carterton, Greytown, and Featherston;

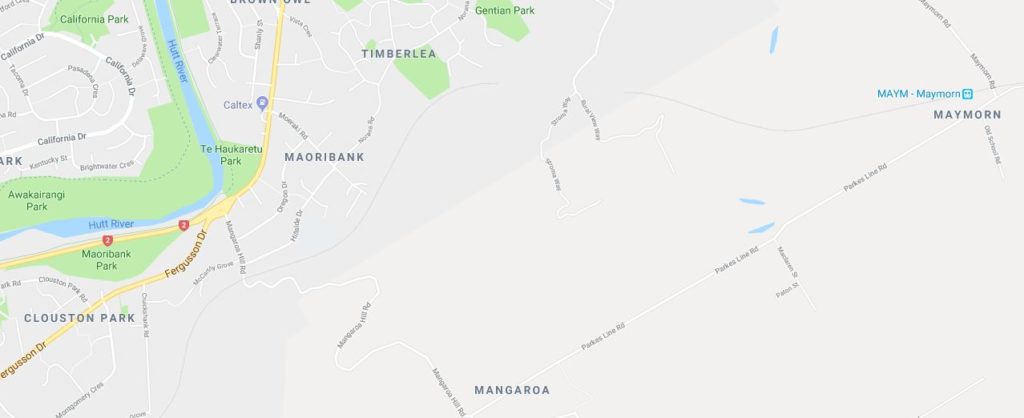

  5. Consider if Maymorn station is needed and whether a Maoribank and/or Clouston Park stations would be much more useful.

    Maymorn Station

All in all the upgrades Wellington needs are not overly expensive but could make a massive difference to the network. There is also the opportunity to seriously improve the Wairarapa Line service for that region.

The next post will have more ideas how we can improve further on the Wellington train network.
