Auckland Transport are tweaking their proposals for removing level crossings in Takaanini.
Updated plans for four new bridges to replace level crossings in Takaanini aim to save money and minimise construction disruption.
The Takaanini bridges are the next phase of the Auckland Rail Level Crossing Programme, which helps unlock the full potential of City Rail Link by allowing more frequent trains while keeping traffic moving and improving safety.
The programme is making strong progress to replace level crossings with safer connections. A number of crossings have been closed and new pedestrian bridges at Takaanini, Te Mahia and Glen Innes stations to replace level crossings are due to be completed in mid-2026.
Auckland Transport is now asking for public feedback on new designs and construction of three new road bridges and a new walking and cycling bridge. When complete in the early 2030s they will enable further increases in train frequencies while keeping vehicles, bikes and pedestrians moving.
Proposed new plans focus on reducing cost and minimising construction impacts, while ensuring there are better connections and the new bridges better fit in the community
The proposals out for feedback include:
- New bridges built alongside Walters Road and Taka Street to minimise disruption
- Additional lanes on the new Manuia Road bridge and Great South Road to improve traffic flow
- Not building a proposed walking and cycling bridge on Spartan Road, an industrial area, to reduce costs.
Main construction of the new Manuia Road and Walters Road bridges will start in 2027, with further bridges built in stages to manage traffic and other construction impacts.
There’s a bit more information below.

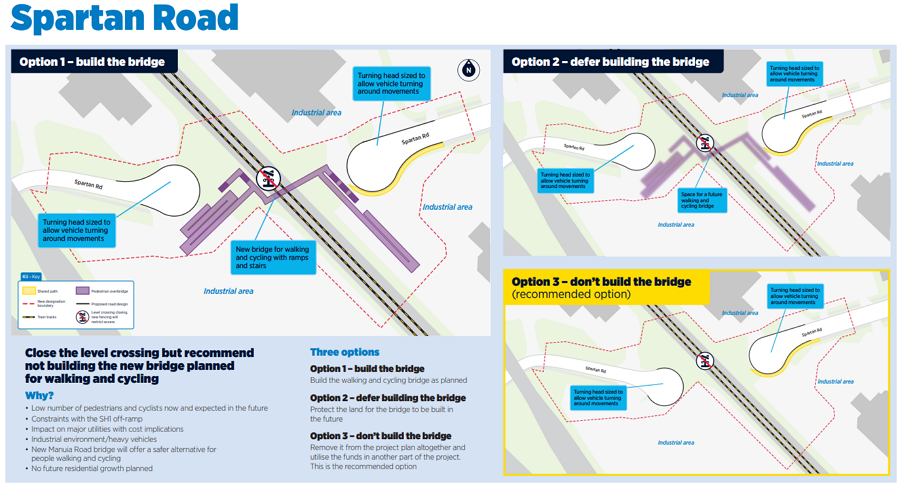

Spartan Road
AT’s original plan here was to close the crossing for vehicles but to build a pedestrian and cycle bridge. As noted above, AT are recommending that the crossing just be closed completely with no bridge, and no future proofing for a bridge in the future.
Normally cutting a walking and cycling bridge would generate opposition from us but looking at the details, this probably makes sense. AT note that only a very small number of people are crossing the tracks here and the new Manuia Rd bridge is close by and in total, only about a 500m detour.
It would a much more useful for the conversation if AT provided the estimated cost of the options.
Also, just looking at the wider area, it seems like there’s a real opportunity to provide better connectivity to the industrial area from all of the housing just north of it with a small bridge over the Papakura Stream.
[Ed: this is an opportunity for accessibility that the local community has been highlighting since at least 2019]

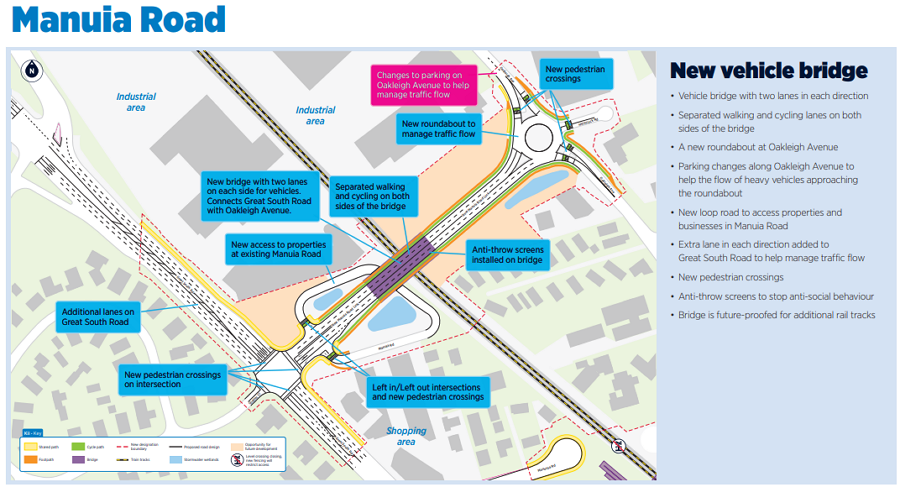

Manuia Rd
AT are now proposing to make this a wider bridge with two lanes in each direction as well as adding additional lanes on Gt South Rd – more on that later. The bridge will have separated walking and cycling lanes, which is good but they’ve also added a new access road to access a handful of properties on the existing Manuia Rd. Could cutting the northern side of this loop and just having people use the roundabout go back over the bridge to access a small left in/left out lane be viable here?
Construction on the bridge is currently expected to start in the middle of next year.
Manuroa Rd
Manuroa Rd is to be closed as part of the level crossing work but a walking and cycling bridge is on the cards here. AT are looking at how that bridge is accessed – either by stairs and escalators or stairs and ramps.
Personally I think ramps are preferable over lifts and have as a bonus they lower ongoing costs.
AT say it’s future proofed for a connection to the station but it’s a shame they’re not delivering that upfront as that could help improve customer outcomes. Under both of these proposals, someone wanting to access the station might have to cross this bridge, then do that again to access the platform. A ramp down from the bridge to the platform would be desirable here.

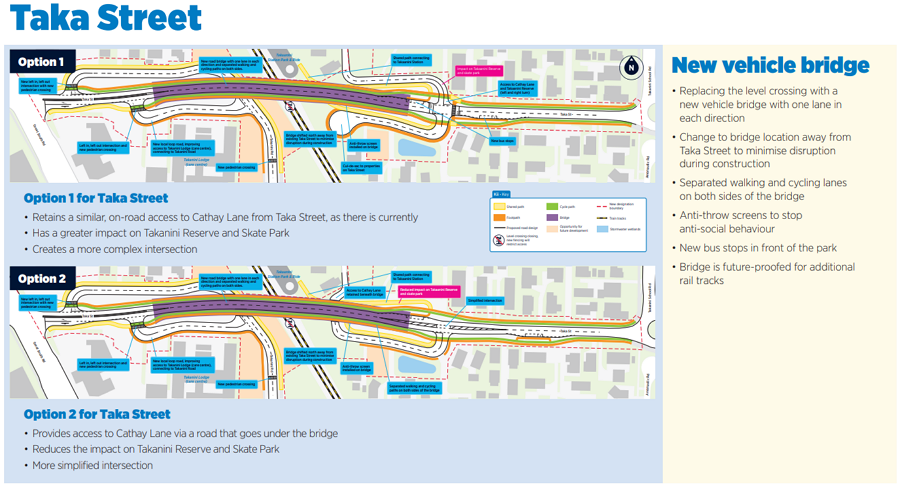

Taka St
AT are now proposing changing the location of the bridge to be slightly north of the existing crossing. This is to allow them to build the bridge off-line and thereby keep the level crossing partially open during construction.
Due to the need to retain access to existing properties the design ends up with a bunch of additional roads either side of the bridge and they’re are looking at two options for how to access Cathay Lane on the eastern side. Option 3 looks the better option here.
Construction of the bridge is expected to start in 2028

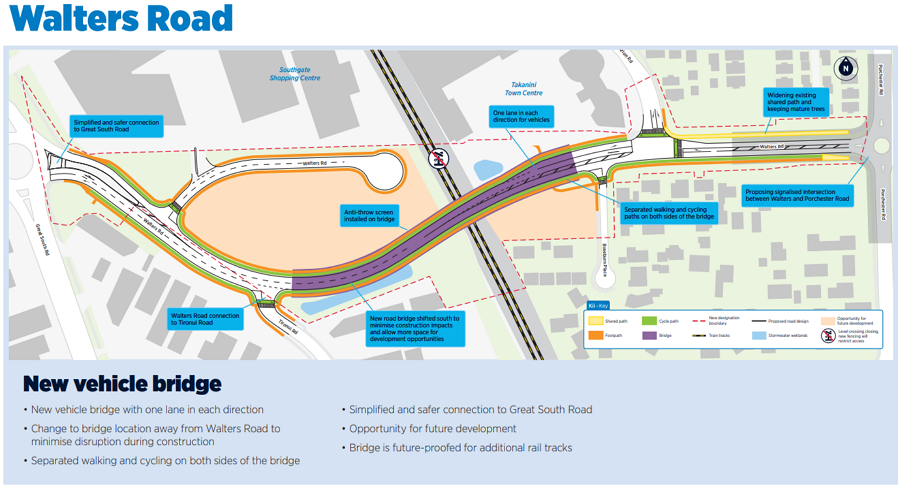

Walters Rd
Lastly at Walters Rd AT is also looking to relocate the bridge to both make it easier to build off-line. In addition, the new design doesn’t have roads looping around to provide property access like at Manuia Rd and Taka St which frees up more land for future development – avoiding the case of wiping out some properties just to provide access to a few other properties.
Construction on the bridge is currently expected to start in the middle of next year.

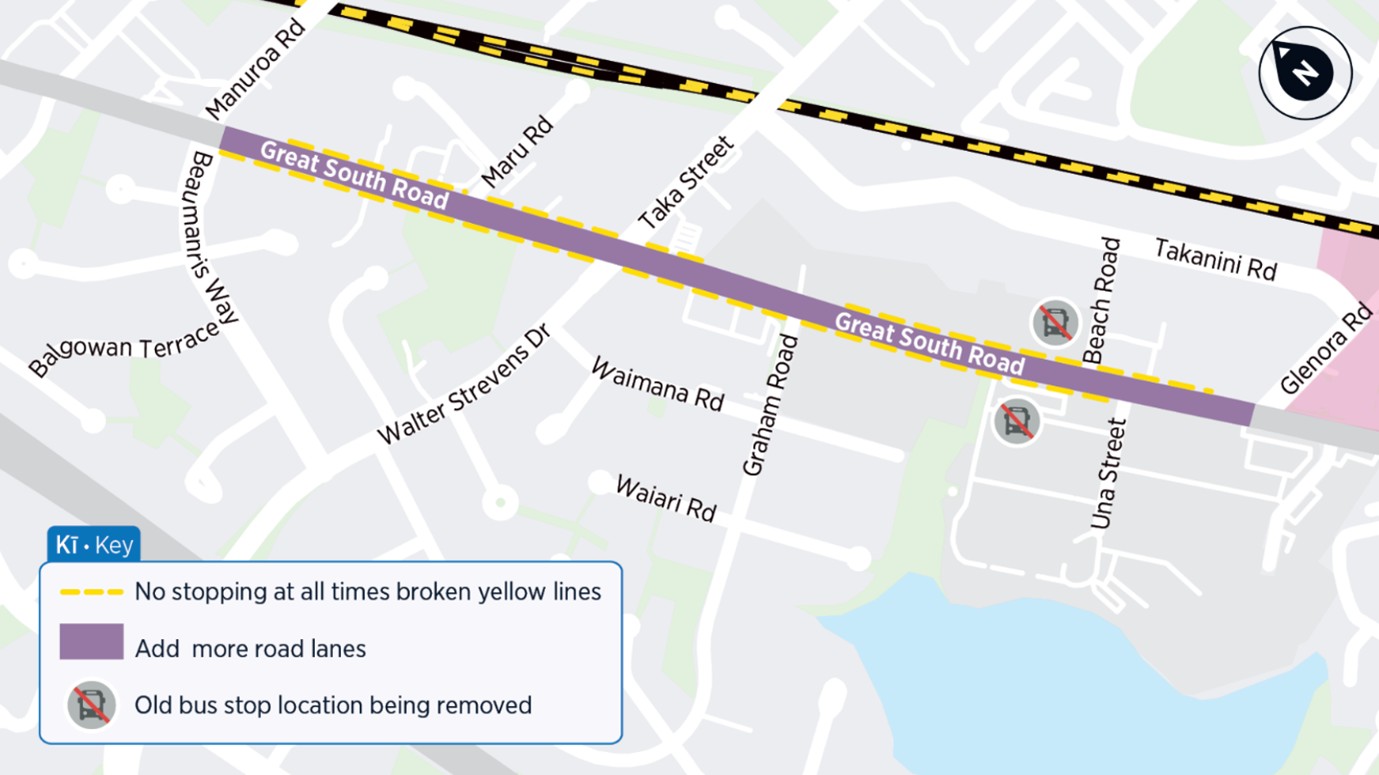

Great South Rd
As well as the level crossings themselves, AT are also planning on making a number of changes to Great South Rd. As noted above, this will include additional lanes from the motorway to Manuroa Rd but a separate piece of work will see more lanes added as far south as Glenora Rd. At the very least they should be making these new lanes transit and/or freight lanes.
They’re adding the lanes by removing on-street parking and most concerningly, also removing existing (unprotected) cycle lanes. This is something the local councillors are happy about.
Manurewa-Papakura Ward Councillor Daniel Newman and Councillor Matt Winiata are supportive of these proposed changes.
“We make no apology for pushing for the removal of the on-road cycle lanes. The existing lanes are both unsafe and it contributes to traffic-slowing bottlenecks.

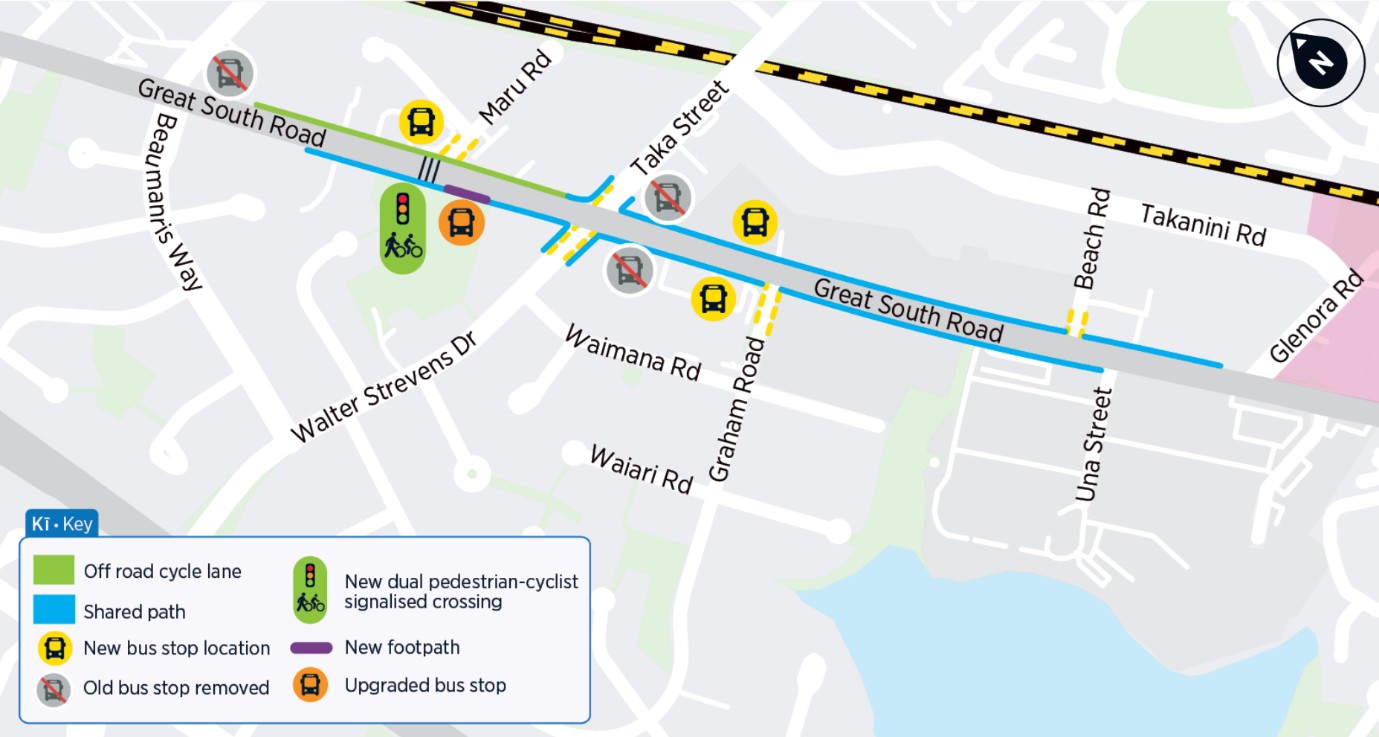

The cycle lanes are going to be replaced with shared paths which is never an ideal outcome but worse is those shared paths will only be delivered at a later stage.
Bizarrely they’re rushing to get the road lanes before the CRL but the shared paths and other pedestrian improvements, such as new and improved crossings, will only delivered at some point after the CRL opens.
Takanini needs these roading improvements to keep ahead of rail upgrades
AT’s Group Manager of Road Network Operations, Chris Martin, says more traffic lanes must go in before the City Rail Link (CRL) opens, which will bring more trains and shorter journey times.
“This project will give Great South Road more room to keep traffic moving as there’s more frequent trains.
Remember there are now no additional train services on day one anymore.
It’s telling that the feedback period for this was only open for 2 weeks and has already closed.
