This post is essentially an update on a very similar one I wrote seven years ago. Hamilton: City of the Future, the intervening years have confirmed those speculations. The case for good passenger rail service between our biggest city and its fast growing neighbour remains compelling. Below I offer a staged and proportionate way deliver on this promise.
Greater Auckland is brought to you by a largely volunteer crew and made possible by generous donations from our readers and fans. If you’d like to support our work, you can join our circle of supporters here, or support us on Substack!
Three facts:
Hamilton is growing

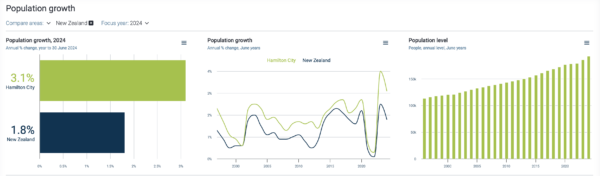

Hamilton is NZ’s fastest growing city, says the Waikato Herald earlier this month:
Hamilton has been crowned New Zealand’s fastest-growing city for the second time.
The city’s population rose by 3.1% since 2023, Hamilton City Council said, to an estimated 192,000.
About 75% of the population growth came from international migration, and 25% from natural increase (births minus deaths).
Regionally, the mighty Waikato was crowned the second-fastest growing region in the country, Statistics New Zealand said.
The region has grown by 2.2% in the year ended June 2024, only topped by Auckland’s 2.5%.
Hamilton city centre is developing in quality
Things are getting really interesting in what has been one of the country’s more depressed and hollowed out city centres, new apartment projects along the river, a growing cafe and deli culture that these projects inevitably support, in a positive feedback loop. The new regional theatre is due to open next year -check out the video here creating a real arts precinct. It already has good things all within a reasonable walking catchment, the Museum, the cricket ground and rugby stadium. But still more than anything, a huge amount of potential.
There is demand for non-car travel between these cities
Te Huia has proven itself. Fight me. Despite its early years being severely messed around by covid, and it just being a slow and suboptimally scheduled service, people have turned up to use it. In numbers greater than conventional transport planning theory says it they should.

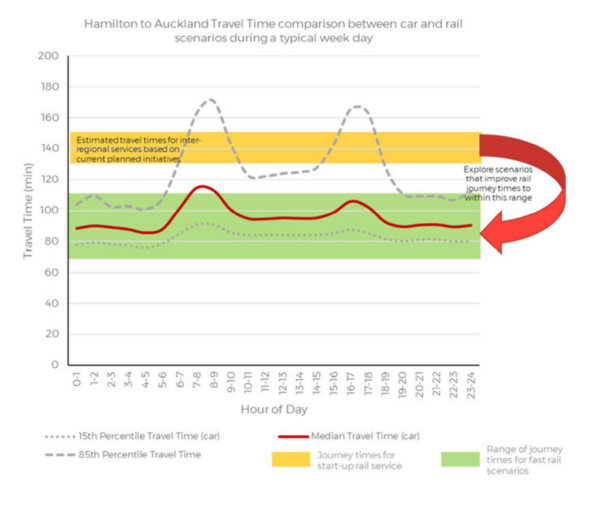

Taking 2 hours 40 minutes The Te Huia ‘start-up’ service is no contender for speed. Running from The Strand on an isolated edge of downtown Auckland to Frankton, also crucially a kind of nowhere, it leaves riders close but to, far from any useful destination at either end, and distant from any connecting services. It also doesn’t yet stop at many useful points along its route. It has no business being as popular as it is.
What is entirely supported by conventional transport planning theory is that a decent rail service between the two cities of the size and growth of Auckland and Hamilton is a valuable complement to other modes and key supporter of economic performance. So below I will look at what would it take to fix theses issues and make it decent.
For the purposes of this post I am assuming operating subsidies will be maintained from central and regional governments as they should be. Or I am writing for a time when a such normative processes are returned. I have no interest in claims that subsidies are bad and proof of failure. All transport including driving is subsidised, subsidies are transfers used to unlock diffuse value. Anyway even the current startup is already comparable with other services by subsidy (here):
The farebox recovery target of 15 per cent is close to being achieved, noting the national average is 11 per cent and Te Huia has a 25 per cent lower subsidy per passenger kilometre than the Auckland metro network.
Of course this should be improved, the key way to do is by attracting more use by improving the appeal and usefulness of the service.
So what should be done to build on this success of this startup?
In the immediate term every one of Darren Davis’ excellent proposed improvements should be adopted, read them in detail here:
- More stations in the Waikato
- More frequency
- Better bus connection at both ends
- A stop at Pukekohe
- Auckland paying its share
- More speed
Of the above #4 has been announced to be happening by Waikato Regional Council, though I am unsure if it is happening yet. Number #5 is shameful. Of course Auckland should also contribute to opex subsidy, around a fifth of riders are Aucklanders it serves Auckland destinations. However it is #6 that really matters. So outside of frequency and scheduling issues, adding some key stops (Pōkeno, Te Kauwhata, Ngāruawāhia), even improving what they offer in the dinning car, and other changes the two big ones are:
- Journey time
- Termini location
So with these issues in mind I had a look at the 2020 business case and working with these I have a staged way forward that balances improvement against capital cost. Keeping cost reasonable means not considering true high speed options on a new route in this, so will look at scenarios A + B only.
Before this it is important to note that the performance of Te Huia, like every train service in AKL, will benefit from the completion of both the rail rebuild programme and especially the third main currently underway in Auckland. This is most congested part of the nation’s rail network so speed and reliability through the most urban leg of the journey should improve dramatically next year. I just wish Kiwi Rail would understand the importance of communicating with us all and tell us by how much. Come-on KR- what can we look forward to? (and yes, hold you account to).
Scenario A
Scenario A, by closing the electrification gap, buying new electric trains, and building a new Hamilton central station sees journey time coming down from 160 minutes to 113, a little under 2 hours.
Scenario B
Scenario B does the above but also straightens out the worst of the track to enable top speeds of 160kph, further reducing journey time to 88mins, and hour and a half.
Staged and cost effective upgrades
Taking these two scenarios as stages over time I would adjust Stage 1 to two key moves that can bring all of the benefits at a considerably lower capital cost:
- Instead of completing the overhead line between Pukekohe to Te Rapa first, buy the Bi-mode battery electric trains to cover the this ~80km gap. This is proven and available technology. Target up to 110kph on existing track* for that sub two hour travel time.
- Build a sub-surface two track Hamilton Central Station below Bryce St integrated with the bus interchange on a branch on the East Coast Main (shown below). Enabling direct city centre to city centre, transport hub to transport hub, service.
*=the slow single track section at Whangamarino needs doubling and straightening under any future.
The cost of the recently completed 19km OHL extension in Auckland was $419m, so closing the remaining gap is likely to be in the order of $1.5-2b. Instead with battery bi-mode trains we can defer the new overhead wire cost to the next stage, yet still reap the benefits of full electrification. Wellington is getting 18 four car tri- or bi-mode interregional trainsets at a budget of $381m. Adding six more to this order can be assumed to be ~ $127m, including stabling and some track and charging costs. Six sets would allow hourly service at peaks and bi-hourly off peak.
Electric power means being able to use Waitematā Station and there will be two terminating platforms there once CRL opens, perfect for this service. Getting directly into both city centres is a huge upgrade, and is a relatively easy task. In Hamilton happily the both the city centre and the bus Interchange are very close to the East Coast Main, the rail corridor is wide and already heading below grade. The new track required can be entirely below Bryce St avoiding property acquisitions. Thus electrification and a new relatively cheap Hamilton station solves the lack of city centre to city centre service. Terminating in these two city centre stations adds real travel time savings on their own. Both are real destinations themselves, but also both are directly under each city’s biggest transfer hubs. The Strand and Frankton Stations are truly nowhere.
Electric traction also means faster acceleration and deceleration, enabling the service to add a few more useful stops while making up the time that takes by getting up to cruising speed between stations faster.

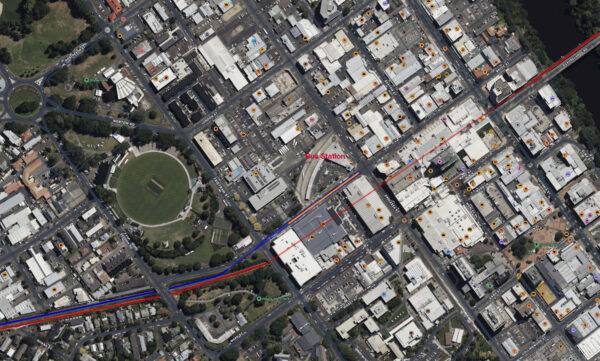

Red: existing East Coast Main, and existing bus interchange.
Blue: new track and subsurface station
Orange: platform between terminating tracks
Key move: Hamilton to add this station to its planning docs and RLTP. Designate it.
For Stage 2 build on these upgrades by straighten out the wiggly sections as indicated in Scenario B above, also now add the missing overhead line for max speed of 160kph:
Or better still do realign the track south of Pōkeno as above, but to the north add a new twin track electrified additional alignment under the Bombays and along SH1 to connect at Drury. Do this instead of quad tracking the existing line to Pukekohe. more capacity and shorter (~10km) and faster route. An efficiency improvement for freight too. Run two service patterns: A local on the existing track stopping at all stations linking Drury right through to Hamilton, and an express on the new alignment stoping only at key stations for a really fast travel time.
Oh how I wish this option was explored when KR designated this section for quad tracking. Time to do it now. Always be planning.
Over time add 3rd and 4th from Drury to Puhinui, and a 4th Puhinui to Westfield. A better way to quad the NMIT Pōkeno-Westfield.
This more direct line is around 128km. So to get to a 60min total journey time would need a 128kph average speed including stops, possible for an express, though 100kph yields a still competitive 88mins, or below 1.5 hours, city centre to city centre. Time competitive with driving, so a really useful complement to the highway system, and the best way to keep the later less clogged and freer flowing into the future. A great choice for many city to city journeys especially when the highway is under pressure, such as during the regular holiday overload or when delayed due to crashes or natural disaster outages.
In conclusion
Auckland-Hamilton passenger rail has value, but an even greater potential, with surprisingly affordable ways to make it a faster and better, really appealing and well used service. The urgent steps from here are to push hard on all possible incremental improvements and plan and designate key step-change moves such as Kirikiriroa Central Station and new electric trains.
