The release of the new draft Government Policy Statement a month ago marked a major shift in government transport policy. Significantly it marks the end of the previous government’s ‘Roads of National Significance’ Policy. It is is therefore a good time to look back exactly what was promised in 2009, and to see how things were at 9 years later.

The original 7 Roads of National Significance were:

  • Puhoi to Wellsford – SH1
  • Completion of the Auckland Western Ring Route – SH20/16/18
  • Auckland Victoria Park bottleneck – SH1
  • Waikato Expressway – SH1
  • Tauranga Eastern Corridor – SH2
  • Wellington Northern Corridor (Levin to Wellington) – SH1
  • Christchurch motorway projects

Over two posts I will go through each of the 7 projects to give a overview of what progress has been made. Some of these roads are also broken up into multiple smaller projects.

This first post will focus on the 3 Auckland projects and the Waikato Expressway, while Part 2 will cover Tauranga, Wellington and Christchurch.

1. Puhoi to Wellsford

Puhoi to Wellsford was split into 2 distinct projects, Puhoi to Warkworth and Warkworth to Wellsford. Puhoi to Warkworth was has progressed rather slowly given the complex route. The preferred route was chosen in 2012, with construction only starting in December 2016. The opening date is expected to be 2021. The video below gives an idea to the huge scale of the project.

The cost of this section is expected to be $709.5 million for 18.5km of new road however it is being built as a Public Private Partnership. Last month contractors found a submerged 10m long waka.

The Warkworth to Wellsford section slipped off the radar for a quite some time, given the even more significant challenges proposed by the terrain and the much lower traffic volumes compared to the Puhoi to Warkworth section. A preferred route was announced in February 2017 and includes a potential tunnel. Further dates are unknown, however given the Warkworth section will take 9 years between the final route decision and opening, the Wellsford section would have been unlikely to open before 2025. This section of the road has been faced with rapidly rising costs. The section was originally costed at $494 million in 2009, and this has now gone up to between $1.4 and $1.9 billion. The future of the project is now uncertain and I’d be surprised if it went ahead as per the previous plans. Thankfully the latest RLTP has $30 million set aside for “Installation of median barriers, wide centre lines and side barriers along SH1 in the Dome Valley to improve safety“. This should provide an urgent solution to the safety issues that were left unfixed while the focus was on investigations for a parallel motorway.

Total Expected Cost if completed: $2.1 to $2.6 billion
Road Length completed: 0km
Road Length under construction: 18km
Road Length not yet started construction: 27km
Verdict: decent progress has been made on the first section though opening is still 4 years away. Almost nothing has happened to the northern section despite big promises.

2. Completion of Western Ring Route

The key project of the Western Ring Route was the Waterview Connection, however the project also has included major works on the North Western motorway, covering:

  • St Lukes Interchange and widening
  • SH16 Causeway Widening
  • Te Atatu Road interchange
  • Lincoln Road interchange
  • Lincoln Road to Westgate widening

With the exception of Lincoln Rd to Westgate, the rest of the projects completed construction in 2016 and 2017, with the Waterview Tunnels opening in July 2017. The Lincoln to Westgate widening only started construction in late 2016 and construction completion is due in 2019.

These projects cost a total of $2.4 billion, and deliver 16 kilometres of new and upgraded motorway.

However, that is not all. The project seems to have continually grown in scope as NZTA realise that one set of motorway widening creates more bottlenecks. The Northern Corridor project (Upper Harbour Highway and motorway interchange upgrade) is now also included. The Northern Corridor project has just started construction and is due to be completed at the end of 2022. The RLTP lists the project as costing $576 million with another $309 million budgeted to extend the Northern Busway.

Of course, one glaring piece that was missed from the Western Ring Route was a dedicated Rapid Transit line. Now that the new government have announced light rail will be built along SH16, we could be about to dig some of it all back up again, or at least create more disruption in the area.

Cost: $2.4 billion but up to $3.2b if you include the Northern Corridor Improvements Project
Road Length completed: 15km
Road Length under construction: 8km
Road Length not yet started construction: 0km
Verdict: most of the original proposed projects have been completed, however full completion of the Western Ring Route motorway looks to be another 4 or 5 years away.

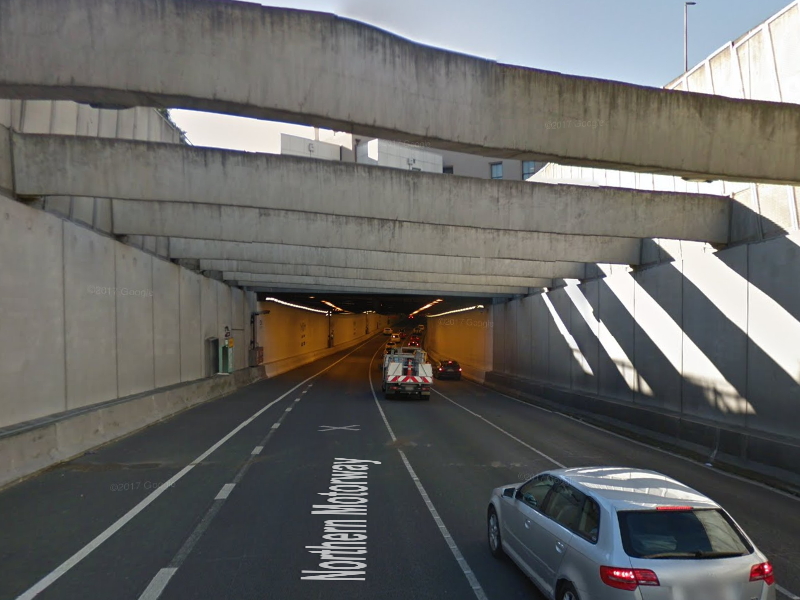

3. Victoria Park tunnel

The Victoria Park tunnel was easily the fastest of the RONS to be completed as it was already consented and planned before it was declared a RONS project. The RONS designation did appear to speed the project up a little though. Construction started in October 2009, with the tunnel opening in November 2011, and remaining smaller pieces finished later in 2012. The tunnel cost a total of $340 million, though is less than half a kilometre long.

Cost: $340 million
Road Length completed: 0.5km
Road Length under construction: 0km
Road Length not yet started construction: 0km
Verdict: quickly completed, however benefited from the work underway before it was declared a RONS.

4. Waikato Expressway

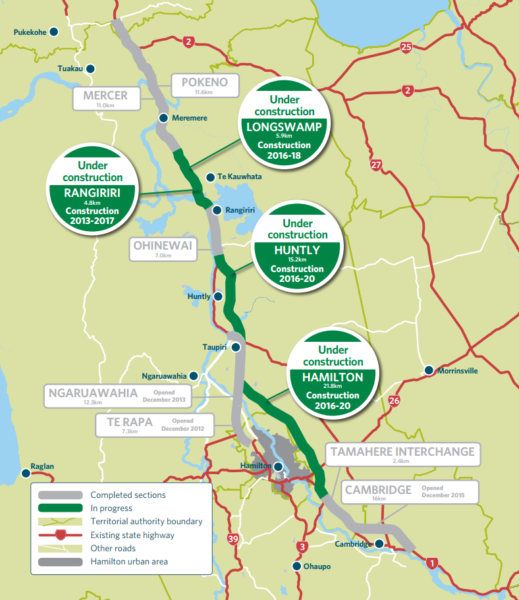

Like the Western Ring Route, the Waikato Expressway consists of a number of different projects and all are now under construction with all due for completion by 2020.

This includes:

  • Longswamp – $96m – construction started 2016, opening 2019
  • Rangiriri – $131m – construction started 2013, opened Easter 2017
  • Huntly – $458m – construction started 2016, opening 2020
  • Ngaruawahia – $160m – opened December 2013
  • Te Rapa – $172m – opened December 2012
  • Hamilton – $973m – construction started March 2016, opening 2020
  • Cambridge – $218m – opened December 2015

The Huntly section is one of the bigger ones as contractors need to move about 3.5 million m³ of earthworks, including cutting a huge chunk out of the Taupiri range.

And here is a recent fly-through of the Hamilton section

When completed the Waikato Expressway will deliver 84 kilometres of upgraded expressway for $2.2 billion.

Cost: $2.2 billion
Road Length completed: 41km
Road Length under construction: 43km
Road Length not yet started construction: 0km
Verdict: many sections are now open, however final major parts won’t be completed until 2020.
